Test Well Truck Applications and How It Works

Understand the operating sequence, suitable applications, field interfaces and performance indicators before planning the job.

Published 2026-08-04 · By Vance Petroleum

Confirm the instrument-truck supply boundary

Define the selected tools, line and deployment method, depth and load basis, acquisition channels and required output records for the actual well program. The proposed truck configuration should identify its carrier, installed deployment equipment, operator workspace and power arrangement. Ask the supplier to list supported interfaces and limitations instead of assuming universal instrument compatibility from the product name.

External wellhead and pressure-control equipment require their own competent selection and acceptance. Surface separators, flow meters and effluent handling are separate package responsibilities unless explicitly included in the accepted offer. Any required data connection to those systems needs an identified interface and verification plan. Retain that boundary with the purchase, factory evidence and site handover records.

Working principle in one operating sequence

The exact sequence depends on the configuration, but every test well truck should be operated from an approved job program. The objective is mobile instrument deployment, depth measurement and data acquisition for an accepted well-survey program. Before startup, the crew verifies placement, tool and line interfaces, utilities, installed functions and communication with the wellsite supervisor.

  1. Review the program. Confirm selected instruments, deployment method, external pressure equipment and responsible teams.
  2. Verify interfaces. Check equipment identities and the approved arrangement before the work is accepted.
  3. Prepare the records. Confirm time, depth, channel definitions and agreed output access.
  4. Follow the approved assignment. Deployment and retrieval require competent personnel and configuration-specific procedures.
  5. Retain the evidence. Preserve instrument, run and event records with the campaign information.

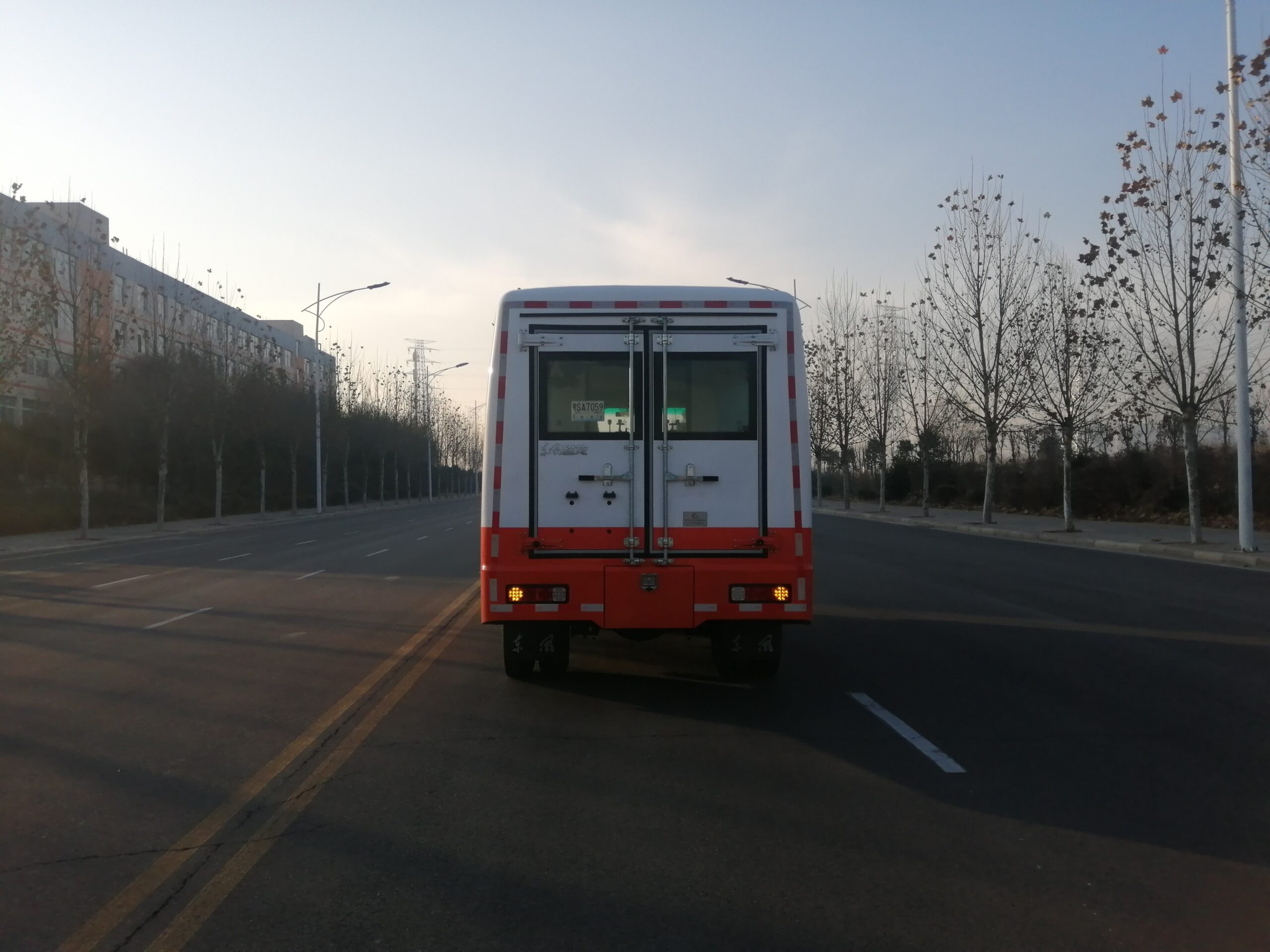

Vance test well truck reference; actual installed equipment requires confirmation
Test well truck reference view. Photographs do not establish external pressure-control or separation equipment supply.

Common applications and configuration priorities

01

instrument surveys for exploration wells

Confirm the required duty, interfaces, operating duration and acceptance criteria for this application.

02

selected production measurement programs

Confirm the required duty, interfaces, operating duration and acceptance criteria for this application.

03

post-treatment instrument surveys

Confirm the required duty, interfaces, operating duration and acceptance criteria for this application.

04

repeated well-survey campaigns

Confirm the required duty, interfaces, operating duration and acceptance criteria for this application.

The same basic package can require different controls and auxiliaries in each application. For example, a unit selected for instrument surveys for exploration wells may prioritize a different operating range than one used for repeated well-survey campaigns. Do not assume a maximum rating guarantees stable operation at the lower or transient points.

Site interfaces to settle before mobilization

InterfaceQuestionsRequired output
MechanicalConnections, pressure class, hoses, supports and liftingApproved interface drawing
UtilitiesFuel, electrical power, air, water and drainageQuantity, quality and connection
ControlsSignals, ESD, communications and data exportCause-and-effect agreement
OperationsCrew roles, exclusion zone and handoverSigned job procedure

At remote sites, small interface omissions cause disproportionate delay. Prepare adapters, spare seals, calibrated gauges, earthing cables, lighting and weather protection before the truck or skid arrives.

What operators should monitor

Monitor the indications and records specified by the accepted instrument program, including the relevant depth, line-load and acquisition information. Keep tool and run identifiers, time references and interruption records with the output files. Review changes against the accepted equipment and operating documents. An unavailable channel, inconsistent depth reference or unexpected equipment indication requires assessment by the responsible team; a display alone does not establish the cause or authorize continued operation.

Record startup, stable operation, interruptions and shutdown conditions. Good job records improve the next equipment selection and help engineering teams distinguish a process limitation from a mechanical fault.

Test Well Truck project-specific engineering focus

A robust procurement package distinguishes mandatory performance from preferred features and future expansion allowances. During instrument surveys for exploration wells, operators must watch selected tools and line requirements and the condition of the line-handling and winch arrangement. For selected production measurement programs, the operating window may be controlled instead by accepted depth and load conditions and the response of the depth measurement and instrument interfaces. Procedures for post-treatment instrument surveys and repeated well-survey campaigns should identify different startup, stabilization and shutdown hold points.

Use the four intended duties as separate review cases: instrument surveys for exploration wells, selected production measurement programs, post-treatment instrument surveys and repeated well-survey campaigns. For each case, record the starting condition, target output, operating duration, expected variation and shutdown condition. This exposes whether a shared configuration is genuinely suitable or whether a different control range, material, auxiliary system or connection set is needed.

A

line-handling and winch arrangement with depth measurement and instrument interfaces

Review their operating envelopes together. Capacity on one side is not useful if the connected subsystem cannot supply, transmit or control the same duty.

B

installed power and control arrangement with surface data-acquisition and operator workspace

Define monitoring, protection, calibration and maintenance access as part of the package acceptance criteria rather than optional details.

The RFQ should therefore carry a project data sheet, interface drawing and deviation schedule. That combination gives the manufacturer enough information to explain the design and gives the buyer a consistent basis for technical evaluation, factory testing and later commissioning.

External technical reference
For broader industry context, consult OSHA oil and gas extraction safety guidance. Project requirements and applicable codes must still be confirmed for the destination country and end user.

Frequently asked questions

Can one test well truck cover every application?

A configurable platform may serve several duties, but each application must remain within its approved operating envelope and use suitable auxiliaries and controls.

What information should operators record?

Record the job sequence, tool and run identity, depth and time references, acquired channels, alarms, interruptions, consumables and shutdown condition.
